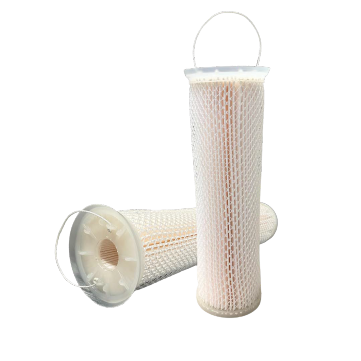

Absolute Rated Pleated Depth Bags for an X01/X100 Housing
East Coast Filter, Inc.’s X01DP Style Absolute Rated Pleated Bag Filters are designed
to fit into an FSI X100 or East Coast Filter, Inc.’s PPX100 Style Bag Filter Vessel. The
Thermally Bonded End Caps create a positive seal inside the Housing without the
need for Basket Support.
Just one of these Pleated Bag Filters replaces approximately twenty Standard Felt Bag
Filters due to the multiple layers of Polyester or Polypropylene pleated media offering
maximum dirt holding capacity and efficiency.
• Broad Chemical Compatibility
• Includes Standard "F" X01 Style Cap Designed to Fit a Pall/FSI X100, MWF X100+ and East Coats Filter, Inc.'s PPX100 style Filter Vessels
• Polypropylene and Polyester Materials meet FDA Regulations or Food Contact under CFR 21, section 177.1520.
• Pleat Construction - Polypropylene or Polyester
• Flange/End Cap Construction - Polypropylene
• Removal Handle Construction - Polyester
• Outer Support Netting - Polyethylene
• Micron Ratings - 1-40 Micron Absolute at 99% Efficiency
• Dimensions - 6-1/16" OD Flange x 18" L
• Media Area - Approx. 35 Ft²
• Maximum Operating Temperature - 200°F (Polypropylene), 275°F (Polyester)
• Operating Conditions - 15 GPM at 20 PSID
Below is all information pertaining to the 600 Series Deep Pleated Bag for an X01/X100 Housing:
600 Series Pleated Bag for X01/X100 Housings
Cannot find the configuration you are looking for? We would be happy to issue you a formal quote with exactly what you need.
